API
StorCycle's API can be leveraged to initiate commands outside of StorCycle, execute minor tasks, or incoroprated into scripting solutions for automated workflows.
Swagger Documentation: https://localhost/apidocs
openapi.yaml: https://localhost/openapi.yaml
¶ Swagger Documentation
StorCycle has an OpenAPI which can be used outside of the application to perform basic configuration and execution. To access the built-in Swagger documentation: https//[sever name or localhost]/apidocs/#
From Swagger, users will first get an Authentication token which is entered into the Swagger UI.
After authorization has occurred, users are then able to create and manage basic functions in StorCycle, such as:
- Storage Locations
- Users
- Creating Migrate/Store Projects
- Restore Projects
- Scan Projects

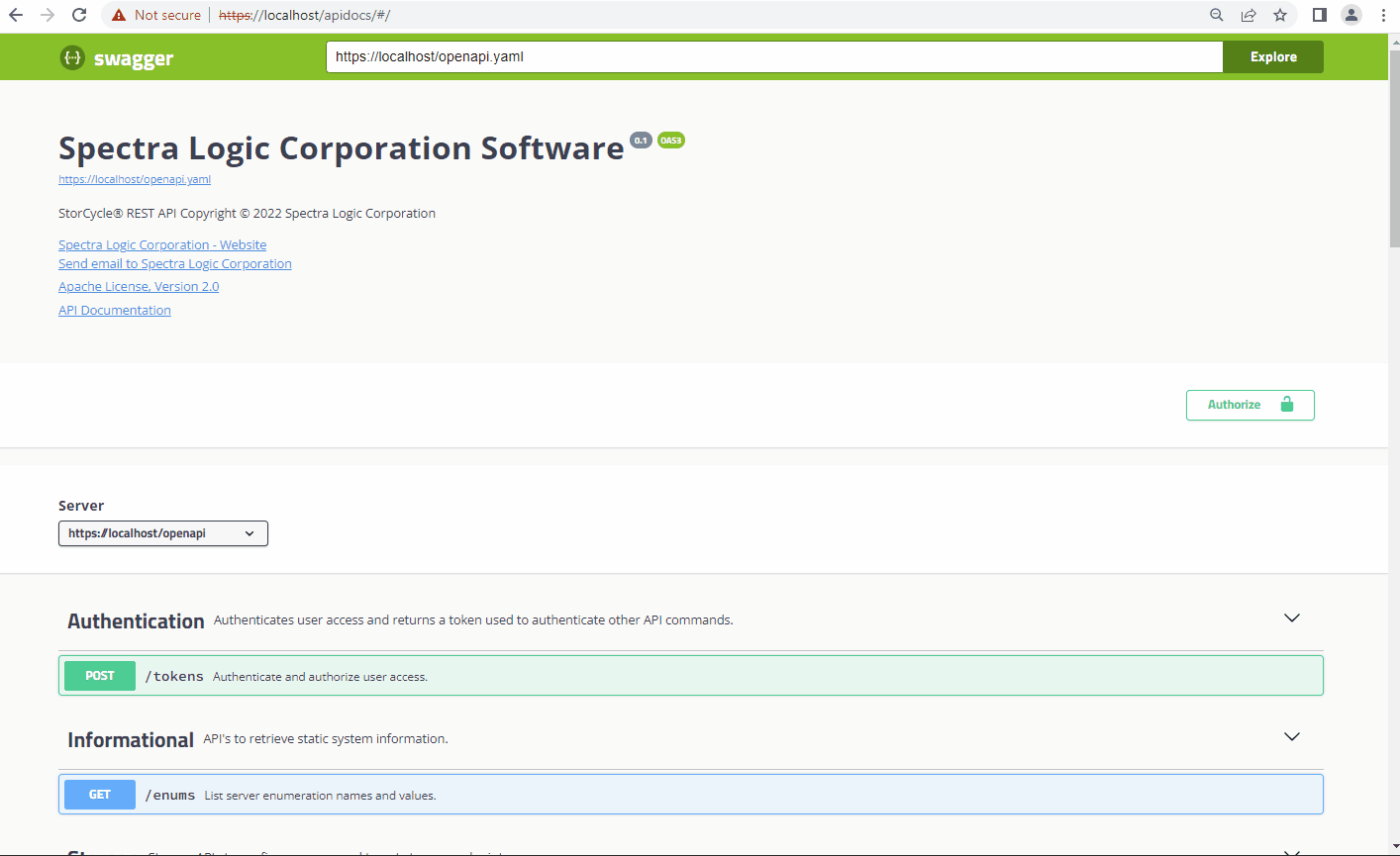

To begin using Swagger, first obtain an authorization token:
Spectra Logic has many API examples in Python available on our Github page: github.com/SpectraLogic/storcycle_api
¶ StorCycle API Examples
Python:
Generate the code:
Download and navigate to the openapi.yaml file from which the client will be generated.
NOTE: Pre-generated Python clients for evaluation are available at: github.com/SpectraLogic/storcycle_api/releases/. Users are advised to generate OpenAPI clients for production releases, to ensure that client software uses the latest API.
Command Line:
Download the open api generator: openapi-generator.tech/docs/installation/. In the command line terminal locate the openapi.yaml file and generate the client code in a temporary (or your desired) directory:
java -jar openapi/codegen/1283369100_openapi-generator-cli-4.3.1.jar generate -g python -i openapi.yaml -o /tmp/
IDE:
Download a client generator plugin for your local IDE and install. Note that while the OpenAPI Generator plugin by Jim Schubert was used within JetBrains IntelliJ to generate the example Python client, any client generator should be adequate.
Use the now installed openapi generator plugin to generate client code from the openapi.yaml file.
ex: Code -> OpenAPI -> Generate from Document
Navigate to the desired language (Python) and fill in the appropriate values for package name etc. Then generate.
Run Example Code:
Download and place the example Python code within the directory to which the generated client code has been saved.
Create the example directory tree used in the example code or change example variable fields to appropriate local system values.
Example directory tree at the C:/ level. You need to either create this directory structure populated with some files in the source subdirectories, or populate with an appropriate local directory tree.
- C:/ApiPythonExampleData/example-source-storage-location/WorkingDirectory/ExcludeDirectory
- C:/ApiPythonExampleData/example-source-storage-location/WorkingDirectory/IncludeDirectory
- C:/ApiPythonExampleData/example-source-storage-location-optional/WorkingDirectory/ExcludeDirectory
- C:/ApiPythonExampleData/example-source-storage-location-optional/WorkingDirectory/IncludeDirectory
- C:/ApiPythonExampleData/example-target-storage-location/
- C:/ApiPythonExampleData/example-target-storage-location-optional
Command Line: Navigate to the examples file in the terminal and run the examples program:
python api_examples.py
IDE:
Load the generated client code into a project. Navigate to the examples file and run from main to run each example.
# coding: utf-8
"""
Spectra Logic Corporation Software
StorCycle® REST API Copyright © 2020 Spectra Logic Corporation # noqa: E501
The version of the OpenAPI document: 0.1
Contact: developer@spectralogic.com
"""
# Used for Python 2/3 compatibility
from __future__ import absolute_import
import os.path
import urllib3
import time
# Used to show a "pretty" print of the API response payloads
from pprint import pprint
# Necessary imports for using the API
import openapi_client
from openapi_client.models.api_storage_location_nas import ApiStorageLocationNas # noqa: E501
from openapi_client.models.api_project_scan import ApiProjectScan # noqa: E501
from openapi_client.models.api_project_archive import ApiProjectArchive # noqa: E501
from openapi_client.models.api_project_restore import ApiProjectRestore # noqa: E501
from openapi_client.rest import ApiException
# Suppress certificate warnings in output
urllib3.disable_warnings(urllib3.exceptions.InsecureRequestWarning)
########################################
# Setup general variables. Individual project names, filters, etc must be changed within each example.
# Note: Change these variables to appropriate local variables to run examples
example_host = "https://localhost/openapi"
example_password = "example_password"
example_username = "example_username"
email_on_complete = 'example@example.com'
# This time will vary based on the number of files in the directory tree. Adjust the time to be long enough such that a
# scan job finishes before the archive is attempted and the archive is finished before the restore is attempted.
sleep_time_seconds = 10
# Note: If the example directory tree is not created, these example variables will need to be changed.
example_directory_root = os.path.join(os.path.abspath(os.sep), "ApiPythonExampleData")
# These should be distinct file paths available on the host machine running StorCycle.
example_source_share_optional = os.path.join(example_directory_root, "example-source-storage-location-optional")
example_source_share = os.path.join(example_directory_root, "example-source-storage-location")
example_target_share_optional = os.path.join(example_directory_root, "example-target-storage-location-optional")
example_target_share = os.path.join(example_directory_root, "example-target-storage-location")
example_scan_working_directory = os.path.join(os.sep, "WorkingDirectory")
example_include_directory = "IncludeDirectory"
example_exclude_directory = "ExcludeDirectory"
# End of general variables that need to be changed for your environment.
########################################
# Example directory tree at the C:/ level.
# You need to create this directory structure populated with some files in the source subdirectories.
# C:/ApiPythonExampleData/example-source-storage-location/WorkingDirectory/ExcludeDirectory
# C:/ApiPythonExampleData/example-source-storage-location/WorkingDirectory/IncludeDirectory
# C:/ApiPythonExampleData/example-source-storage-location-optional/WorkingDirectory/ExcludeDirectory
# C:/ApiPythonExampleData/example-source-storage-location-optional/WorkingDirectory/IncludeDirectory
# C:/ApiPythonExampleData/example-target-storage-location/
# C:/ApiPythonExampleData/example-target-storage-location-optional
# Get Credentials/Login Example
def example_api_login():
# Set the configuration
configuration = openapi_client.Configuration(
host=example_host,
)
configuration.verify_ssl = False
configuration.ssl_ca_cert = None
configuration.assert_hostname = False
configuration.cert_file = None
print("# Get an access token")
with openapi_client.ApiClient(configuration) as api_client:
api_instance_auth = openapi_client.AuthenticationApi(api_client)
body_login = openapi_client.ApiCredentials(password=example_password, username=example_username)
api_response = api_instance_auth.login(body_login)
pprint(api_response)
# Makes each example request body for creating/updating source storage locations
def make_instance_storage_location_source(include_optional):
# model = openapi_client.models.api_storage_location_nas.ApiStorageLocationNas() # noqa: E501
# Example create/update source storage location request body with optional fields
if include_optional:
return ApiStorageLocationNas(
cost_per_tb=1.337,
description='A description of the storage location',
is_target=False,
off_peak_bytes_per_second_limit=1.337,
off_peak_files_per_second_scan_limit=1.337,
path=example_source_share_optional,
peak_bytes_per_second_limit=1.337,
peak_files_per_second_scan_limit=1.337,
peak_times_schedule=[
{"durationMinutes": 1063, "dayOfWeek": 4, "startTimeHourAndMinutes": "04:05"}
],
type='NAS'
)
# Example create/update source storage location request body with required fields
else:
return ApiStorageLocationNas(
is_target=False,
path=example_source_share,
type='NAS',
)
# Makes each example request body for creating/updating target storage locations
def make_instance_storage_location_target(include_optional):
# model = openapi_client.models.api_storage_location_nas.ApiStorageLocationNas() # noqa: E501
# Example create/update target storage location request body with optional fields
if include_optional:
return ApiStorageLocationNas(
cost_per_tb=1.337,
description='A description of the storage location',
is_target=True,
off_peak_bytes_per_second_limit=1.337,
off_peak_files_per_second_scan_limit=1.337,
path=example_target_share_optional,
peak_bytes_per_second_limit=1.337,
peak_files_per_second_scan_limit=1.337,
peak_times_schedule=[
{"durationMinutes": 1063, "dayOfWeek": 4, "startTimeHourAndMinutes": "04:05"}
],
type='NAS'
)
# Example create/update target storage location request body with required fields
else:
return ApiStorageLocationNas(
is_target=True,
path=example_target_share,
type='NAS',
)
# Create/Update Storage Location Example
def example_api_create_update_storage_location():
# Create instance of a source storage location (the request body)
example_local_nas_source = make_instance_storage_location_source(include_optional=False)
example_local_nas_source_optional = make_instance_storage_location_source(include_optional=True)
# Create instance of a target storage location (the request body)
example_local_nas_target = make_instance_storage_location_target(include_optional=False)
example_local_nas_target_optional = make_instance_storage_location_target(include_optional=True)
# Set the configuration
configuration = openapi_client.Configuration(
host=example_host,
)
configuration.verify_ssl = False
configuration.ssl_ca_cert = None
configuration.assert_hostname = False
configuration.cert_file = None
# Get an access token and add it to the configuration
with openapi_client.ApiClient(configuration) as api_client:
api_instance_auth = openapi_client.AuthenticationApi(api_client)
body_login = openapi_client.ApiCredentials(password=example_password, username=example_username)
api_response = api_instance_auth.login(body_login)
configuration.access_token = api_response.token
# Create a StorageApi instance to make API storage commands
api_instance = openapi_client.StorageApi(api_client)
print("# Create/Update source storage location using required fields")
try:
api_response = api_instance.update_storage_location(storage_location_name=
"Example-Source",
body=example_local_nas_source)
pprint(api_response)
except ApiException as e:
print("Exception when calling StorageApi->update_storage_location (example for local NAS source): %s\n"
% e)
print("# Create/Update target storage location using required fields")
try:
api_response = api_instance.update_storage_location(storage_location_name=
"Example-Target",
body=example_local_nas_target)
pprint(api_response)
except ApiException as e:
print("Exception when calling StorageApi->update_storage_location (example for local NAS target): %s\n"
% e)
print("# Create/Update source storage location optional fields")
try:
api_response = api_instance.update_storage_location(storage_location_name=
"Example-Source-Optional-Fields",
body=example_local_nas_source_optional)
pprint(api_response)
except ApiException as e:
print("Exception when calling StorageApi->update_storage_location (example for local NAS source w/ "
"optional fields): %s\n" % e)
print("# Create/Update target storage location optional fields")
try:
api_response = api_instance.update_storage_location(storage_location_name=
"Example-Target-Optional-Fields",
body=example_local_nas_target_optional)
pprint(api_response)
except ApiException as e:
print("Exception when calling StorageApi->update_storage_location (example for local NAS target w/ "
"optional fields): %s\n" % e)
# Makes each example request body for creating/updating scan projects
def make_instance_scan_project(include_optional):
# model = openapi_client.models.api_project_scan.ApiProjectScan() # noqa: E501
# Example create/update scan project request body with optional fields
if include_optional:
return ApiProjectScan(
description='A description of the scan project',
share='Example-Source-Optional-Fields',
working_directory=example_scan_working_directory,
tags=[
'tag'
],
schedule={"monthsOfYear": ["monthsOfYear", "monthsOfYear"], "period": "Now", "daysOfMonth": [0, 0],
"startMonth": 3, "startDay": 5, "startHour": 13, "startYear": 2021, "interval": 6,
"daysOfWeek": ["daysOfWeek", "daysOfWeek"], "startMinute": 33},
)
# Example create/update scan project request body with required fields
else:
return ApiProjectScan(
share='Example-Source',
schedule={"monthsOfYear": ["monthsOfYear", "monthsOfYear"], "period": "Now", "daysOfMonth": [0, 0],
"startMonth": 3, "startDay": 5, "startHour": 13, "startYear": 2021, "interval": 6,
"daysOfWeek": ["daysOfWeek", "daysOfWeek"], "startMinute": 33},
)
# Create/Update Scan Project Example
def example_api_create_update_project_scan():
# Create instance of a scan project (the request body)
example_scan = make_instance_scan_project(include_optional=False)
example_scan_optional = make_instance_scan_project(include_optional=True)
# Set the configuration
configuration = openapi_client.Configuration(
host=example_host,
)
configuration.verify_ssl = False
configuration.ssl_ca_cert = None
configuration.assert_hostname = False
configuration.cert_file = None
# Get an access token and add it to the configuration
with openapi_client.ApiClient(configuration) as api_client:
api_instance_auth = openapi_client.AuthenticationApi(api_client)
body_login = openapi_client.ApiCredentials(password=example_password, username=example_username)
api_response = api_instance_auth.login(body_login)
configuration.access_token = api_response.token
# Create a ProjectApi instance to make API storage commands
api_instance = openapi_client.ProjectApi(api_client)
print("# Create scan project with required fields")
try:
api_response = api_instance.update_scan_project(project_name="Example-Scan-Project",
body=example_scan)
pprint(api_response)
except ApiException as e:
print("Exception when calling ProjectApi->update_scan_project (example for scan local nas): %s\n" % e)
print("# Create scan project with optional fields")
try:
api_response = api_instance.update_scan_project(project_name="Example-Scan-Project-Optional-Fields",
body=example_scan_optional)
pprint(api_response)
except ApiException as e:
print("Exception when calling ProjectApi->update_scan_project (example for scan local nas w/ optional "
"fields): %s\n" % e)
# Makes each example request body for creating/updating archive projects
def make_instance_archive_project(include_optional):
# model = openapi_client.models.api_project_archive.ApiProjectArchive() # noqa: E501
# Example create/update archive project request body with optional fields
if include_optional:
return ApiProjectArchive(
description='A description of the archive project',
share='Example-Source-Optional-Fields',
tags=[
'tag'
],
active=True,
project_type='Archive',
bread_crumb_action='CreateHtmlLink',
targets=[
'Example-Target-Optional-Fields'
],
filter={"excludeDirectories": [example_exclude_directory],
"minimumSize": "Any", "minimumAge": "AnyAge",
"includeDirectories": [example_include_directory]},
schedule={"monthsOfYear": ["monthsOfYear", "monthsOfYear"], "period": "Now", "daysOfMonth": [0, 0],
"startMonth": 3, "startDay": 5, "startHour": 13, "startYear": 2021, "interval": 6,
"daysOfWeek": ["daysOfWeek", "daysOfWeek"], "startMinute": 33},
status={"name": "Example-Archive-Name", "nextRunTime": "2021-01-23T04:56:07.000Z",
"createdBy": "Example User", "created": "2020-01-23T04:56:07.000Z",
"lastSuccessfulJob": "2020-01-23T04:56:07.000Z", "lastJobRunTime": "2020-01-23T04:56:07.000Z",
"updated": "2020-01-23T04:56:07.000Z", "conflictDetected": "2020-01-23T04:56:07.000Z"}
)
# Example create/update archive project request body with required fields
else:
return ApiProjectArchive(
share='Example-Source',
project_type='Archive',
bread_crumb_action="RemoveOriginal",
targets=[
'Example-Target'
],
schedule={"monthsOfYear": ["monthsOfYear", "monthsOfYear"], "period": "Now", "daysOfMonth": [0, 0],
"startMonth": 3, "startDay": 5, "startHour": 13, "startYear": 2021, "interval": 6,
"daysOfWeek": ["daysOfWeek", "daysOfWeek"], "startMinute": 33},
)
# Create/Update Archive Project Example
def example_api_create_update_project_archive():
# Create instance of an archive project (the request body)
example_archive = make_instance_archive_project(include_optional=False)
example_archive_optional = make_instance_archive_project(include_optional=True)
# Set the configuration
configuration = openapi_client.Configuration(
host=example_host,
)
configuration.verify_ssl = False
configuration.ssl_ca_cert = None
configuration.assert_hostname = False
configuration.cert_file = None
# Get an access token and add it to the configuration
with openapi_client.ApiClient(configuration) as api_client:
api_instance_auth = openapi_client.AuthenticationApi(api_client)
body_login = openapi_client.ApiCredentials(password=example_password, username=example_username)
api_response = api_instance_auth.login(body_login)
configuration.access_token = api_response.token
# Create a ProjectApi instance to make API storage commands
api_instance = openapi_client.ProjectApi(api_client)
print("# Create archive project with required fields")
try:
api_response = api_instance.update_archive_project(project_name="Example-Archive-Project",
body=example_archive)
pprint(api_response)
except ApiException as e:
print("Exception when calling ProjectApi->update_archive_project (example for archive local nas to "
"local nas): %s\n" % e)
print("# Create archive project with optional fields")
try:
api_response = api_instance.update_archive_project(project_name="Example-Archive-Project-Optional-Fields"
, body=example_archive_optional)
pprint(api_response)
except ApiException as e:
print("Exception when calling ProjectApi->update_archive_project (example for archive local nas to "
"local nas w/ optional fields): %s\n" % e)
# Makes each example request body for creating/updating restore projects
def make_instance_restore_project(include_optional):
# model = openapi_client.models.api_project_restore.ApiProjectRestore() # noqa: E501
# Example create/update restore project request body with optional fields
if include_optional:
return ApiProjectRestore(
description='A description of the restore project',
share='Example-Source-Optional-Fields',
tags=[
'tag'
],
active=True,
project_type='Restore',
email_on_complete=[
email_on_complete
],
restore_manifest='Example-Archive-Project-Optional-Fields-1',
schedule={"monthsOfYear": ["December", "January"], "period": "Now", "daysOfMonth": [1, 15],
"startMonth": 12, "startDay": 1, "startHour": 13, "startYear": 2020, "interval": 6,
"daysOfWeek": ["daysOfWeek", "daysOfWeek"], "startMinute": 33},
status={"name": "Example-Restore-Name", "nextRunTime": "2021-01-23T04:56:07.000Z",
"createdBy": "Example User", "created": "2020-01-23T04:56:07.000Z",
"lastSuccessfulJob": "2020-01-23T04:56:07.000Z", "lastJobRunTime": "2020-01-23T04:56:07.000Z",
"updated": "2020-01-23T04:56:07.000Z", "conflictDetected": "2020-01-23T04:56:07.000Z"}
)
# Example create/update restore project request body with required fields
else:
return ApiProjectRestore(
share='Example-Source',
project_type='Restore',
restore_manifest='Example-Archive-Project-1',
schedule={"monthsOfYear": ["monthsOfYear", "monthsOfYear"], "period": "Now", "daysOfMonth": [0, 0],
"startMonth": 3, "startDay": 5, "startHour": 13, "startYear": 2021, "interval": 6,
"daysOfWeek": ["daysOfWeek", "daysOfWeek"], "startMinute": 33},
)
# Create/Update Restore Project Example
def example_api_create_update_project_restore():
# Create instance of a restore project (the request body)
example_restore = make_instance_restore_project(include_optional=False)
example_restore_optional = make_instance_restore_project(include_optional=True)
# Set the configuration
configuration = openapi_client.Configuration(
host=example_host,
)
configuration.verify_ssl = False
configuration.ssl_ca_cert = None
configuration.assert_hostname = False
configuration.cert_file = None
# Get an access token and add it to the configuration
with openapi_client.ApiClient(configuration) as api_client:
api_instance_auth = openapi_client.AuthenticationApi(api_client)
body_login = openapi_client.ApiCredentials(password=example_password, username=example_username)
api_response = api_instance_auth.login(body_login)
configuration.access_token = api_response.token
# Create a ProjectApi instance to make API storage commands
api_instance = openapi_client.ProjectApi(api_client)
print("# Create restore project with optional fields")
try:
api_response = api_instance.update_restore_project(project_name="Example-Restore-Project-Optional-Fields",
body=example_restore_optional)
pprint(api_response)
except ApiException as e:
print("Exception when calling ProjectApi->update_restore_project (example for restore from local nas "
"to local nas w/ optional fields): %s\n" % e)
print("# Create restore project with required fields")
try:
api_response = api_instance.update_restore_project(project_name="Example-Restore-Project",
body=example_restore)
pprint(api_response)
except ApiException as e:
print("Exception when calling ProjectApi->update_restore_project (example for restore from local nas "
"to local nas): %s\n" % e)
# Get Storage Location Example
def example_api_get_storage_location():
# Set the configuration
configuration = openapi_client.Configuration(
host=example_host
)
configuration.verify_ssl = False
configuration.ssl_ca_cert = None
configuration.assert_hostname = False
configuration.cert_file = None
# Get an access token and add it to the configuration
with openapi_client.ApiClient(configuration) as api_client:
api_instance_auth = openapi_client.AuthenticationApi(api_client)
body_login = openapi_client.ApiCredentials(password=example_password, username=example_username)
api_response = api_instance_auth.login(body_login)
configuration.access_token = api_response.token
# Create a ProjectApi instance to make API storage commands
api_instance = openapi_client.StorageApi(api_client)
print("# Get a single storage location")
try:
api_response = api_instance.get_storage_location("Example-Source")
pprint(api_response)
except ApiException as e:
print("Exception when calling StorageApi->get_storage_location (example GET single storage location): "
"%s\n" % e)
print("# Get ALL storage locations")
try:
api_response = api_instance.list_storage_locations()
pprint(api_response)
except ApiException as e:
print("Exception when calling StorageApi->list_storage_locations (example GET list of storage "
"locations): %s\n" % e)
# Get Project Example
def example_api_get_project():
# Set the configuration
configuration = openapi_client.Configuration(
host=example_host,
)
configuration.verify_ssl = False
configuration.ssl_ca_cert = None
configuration.assert_hostname = False
configuration.cert_file = None
# Get an access token and add it to the configuration
with openapi_client.ApiClient(configuration) as api_client:
api_instance_auth = openapi_client.AuthenticationApi(api_client)
body_login = openapi_client.ApiCredentials(password=example_password, username=example_username)
api_response = api_instance_auth.login(body_login)
configuration.access_token = api_response.token
# Create a ProjectApi instance to make API storage commands
api_instance = openapi_client.ProjectApi(api_client)
print("# Get a single project")
try:
api_response = api_instance.get_project(project_name="Example-Archive-Project")
pprint(api_response)
except ApiException as e:
print("Exception when calling ProjectApi->get_project (example GET single project): %s\n" % e)
print("# Get ALL projects")
try:
api_response = api_instance.list_projects()
pprint(api_response)
except ApiException as e:
print("Exception when calling ProjectApi->list_projects (example GET list of projects): %s\n" % e)
def example_api_get_jobs():
# Set the configuration
configuration = openapi_client.Configuration(
host=example_host,
)
configuration.verify_ssl = False
configuration.ssl_ca_cert = None
configuration.assert_hostname = False
configuration.cert_file = None
# Get an access token and add it to the configuration
with openapi_client.ApiClient(configuration) as api_client:
api_instance_auth = openapi_client.AuthenticationApi(api_client)
body_login = openapi_client.ApiCredentials(password=example_password, username=example_username)
api_response = api_instance_auth.login(body_login)
configuration.access_token = api_response.token
# Create a JobStatusAPI instance to make API commands
api_instance = openapi_client.JobStatusApi(api_client)
print("# Get five Job statuses")
try:
params = {"include_all": True, "limit": 5}
api_response = api_instance.list_all_jobs_status(**params)
pprint(api_response)
except ApiException as e:
print("Exception when calling JobStatusApi->list_all_jobs_status: %s\n" % e)
# Runs each API call sequentially as to show workflow.
def main():
example_api_login()
example_api_create_update_storage_location()
example_api_create_update_project_scan()
time.sleep(sleep_time_seconds) # sleep long enough for the scan to finish before attempting archive
example_api_create_update_project_archive()
time.sleep(sleep_time_seconds) # sleep long enough for the archive to finish before attempting restore
example_api_create_update_project_restore()
example_api_get_storage_location()
example_api_get_project()
example_api_get_jobs()
if __name__ == '__main__':
main()
